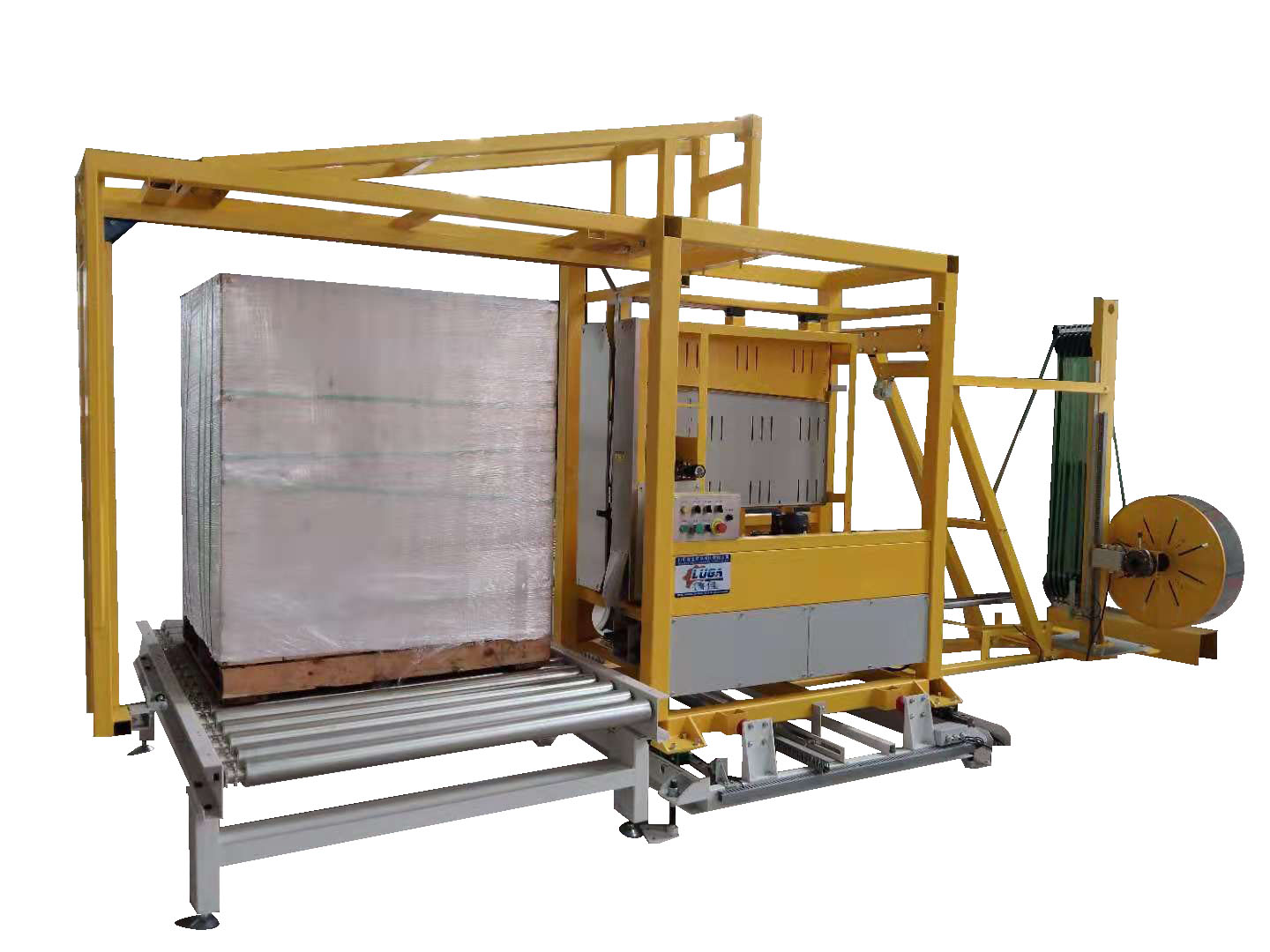

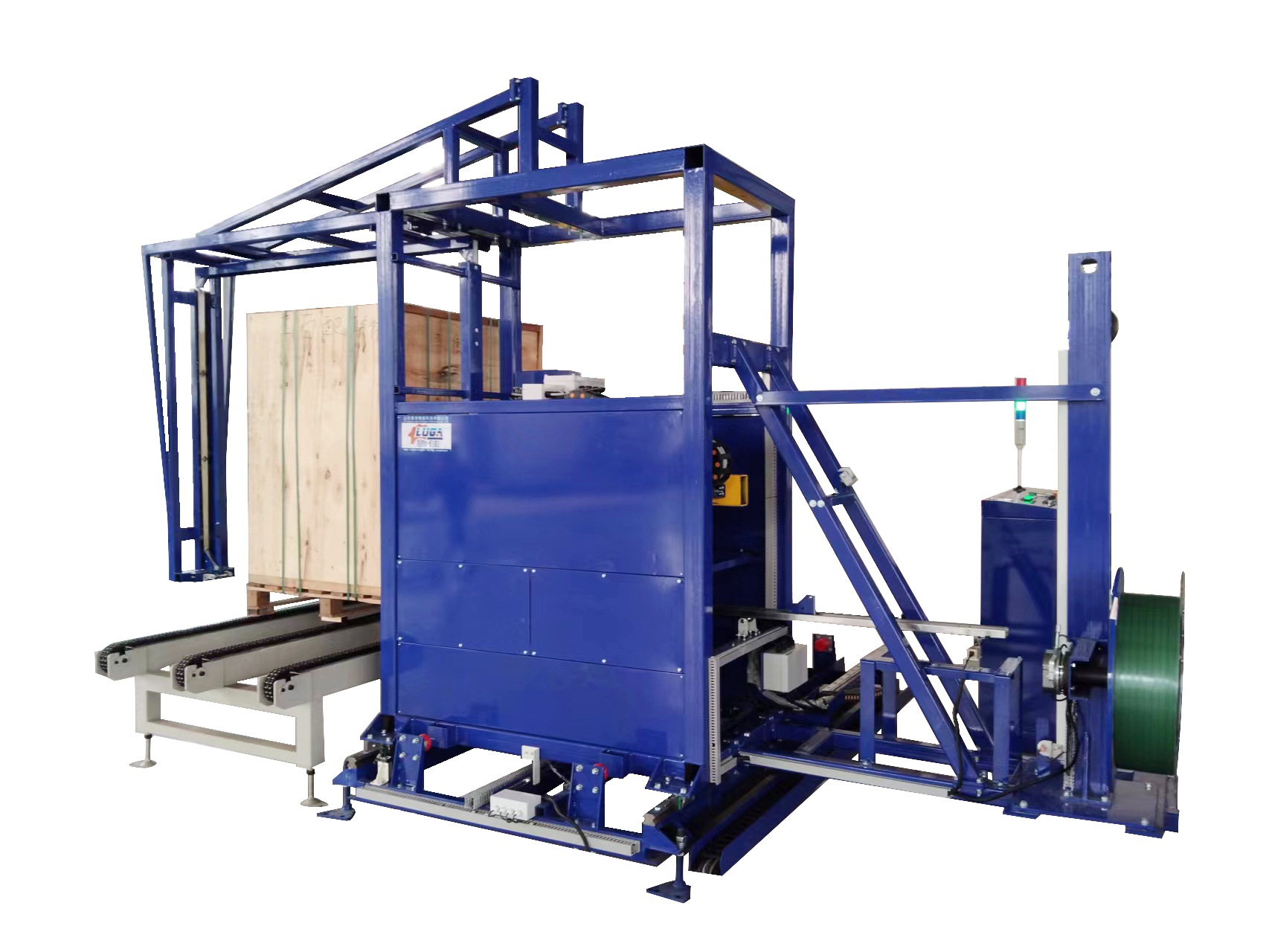

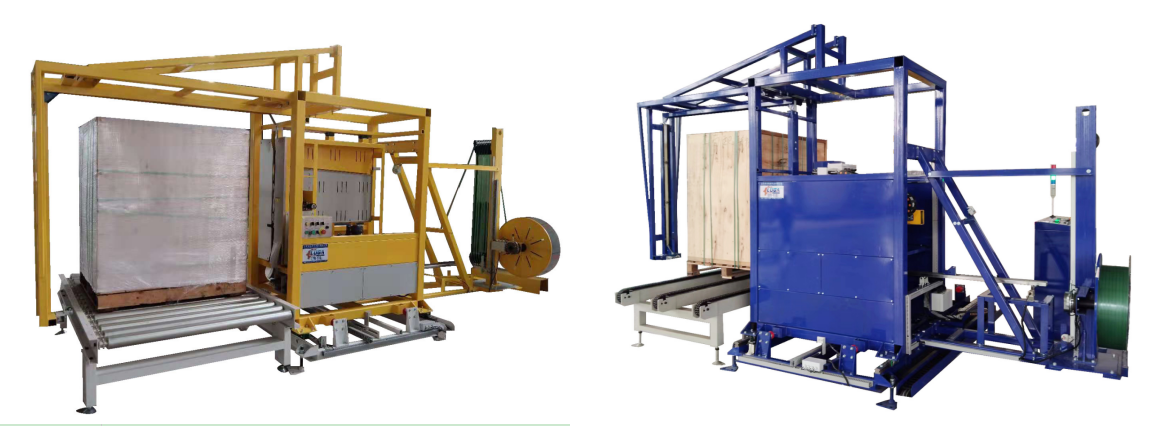

Complete mobile sword-piercing baler
1：We Lujia have 15000 square meters of production workshop, with independent welding ability, welding using welding robot for welding, fast speed, smooth and beautiful surface.
2: We Lujia has independent laser doweling ability, all processing parts are cut with high power laser machine oxygen, cutting parts without burr, fine, beautiful.
3：We Lujia has independent bending processing capacity, bending and cutting a narrow and smooth incision, no rounded corners and mechanical undercutting often have a burr.
4: We have independent design and development capabilities, independent assembly capabilities, independent after-sales capabilities. Lujia Intelligent for high-tech enterprises, specializing in new enterprises, small and medium-sized science and technology enterprises, the company's products have passed the European Union CE certification, 1S09001 quality and environmental system certification, 1S045001: occupational health and safety management system, 1S014001: environmental management system certification.
Such a company has a guarantee of after-sales service, quality and brand, which is why I suggest you choose Lujia Intelligent. Quality is the foundation of the enterprise!
| Equipment name | Complete mobile sword-piercing baler |
| Model | LJ-DB700D |
| Specification of pallet holes | H≥100-120mm |
| Bundling method | //+ turn back// glyphs |
| Bonding method | Ironing and gluing method |
| bonding site | topside bonding |
| Tightening method | Secondary tensioning, fixed length to control the binding force |
| tensioning force | Adjustable within 90KG |
| Movement movement method | Motorized, frequency-controlled |
| sword piercing | Single Side Motorized Docking Type |
| control method | Automatic, manual switching, with emergency stop control button |
| Taping efficiency | 20-25 seconds/channel |
| Moving method of the whole machine | The whole machine adopts the rail type moving method to locate accurately. |
| power supply | 380V 50hz |
| Equipment power | 3.6KW |
| Optional | Higher/larger |
The top-beating mobile sword-piercing baler is a baling machine for palletized goods after //+turning//channel packing. The forklift forks the goods onto the machine, the forklift exits the working area, the operator exits the working area and the remote control enters into automatic operation by pressing the “Start” button.This machine is designed for packing the whole stack in tic-tac-toe shape. All packing processes inside the machine can be completed automatically without manual intervention. It realizes the effect of moisture-proof, dust-proof, binding and fast transferring of products.
