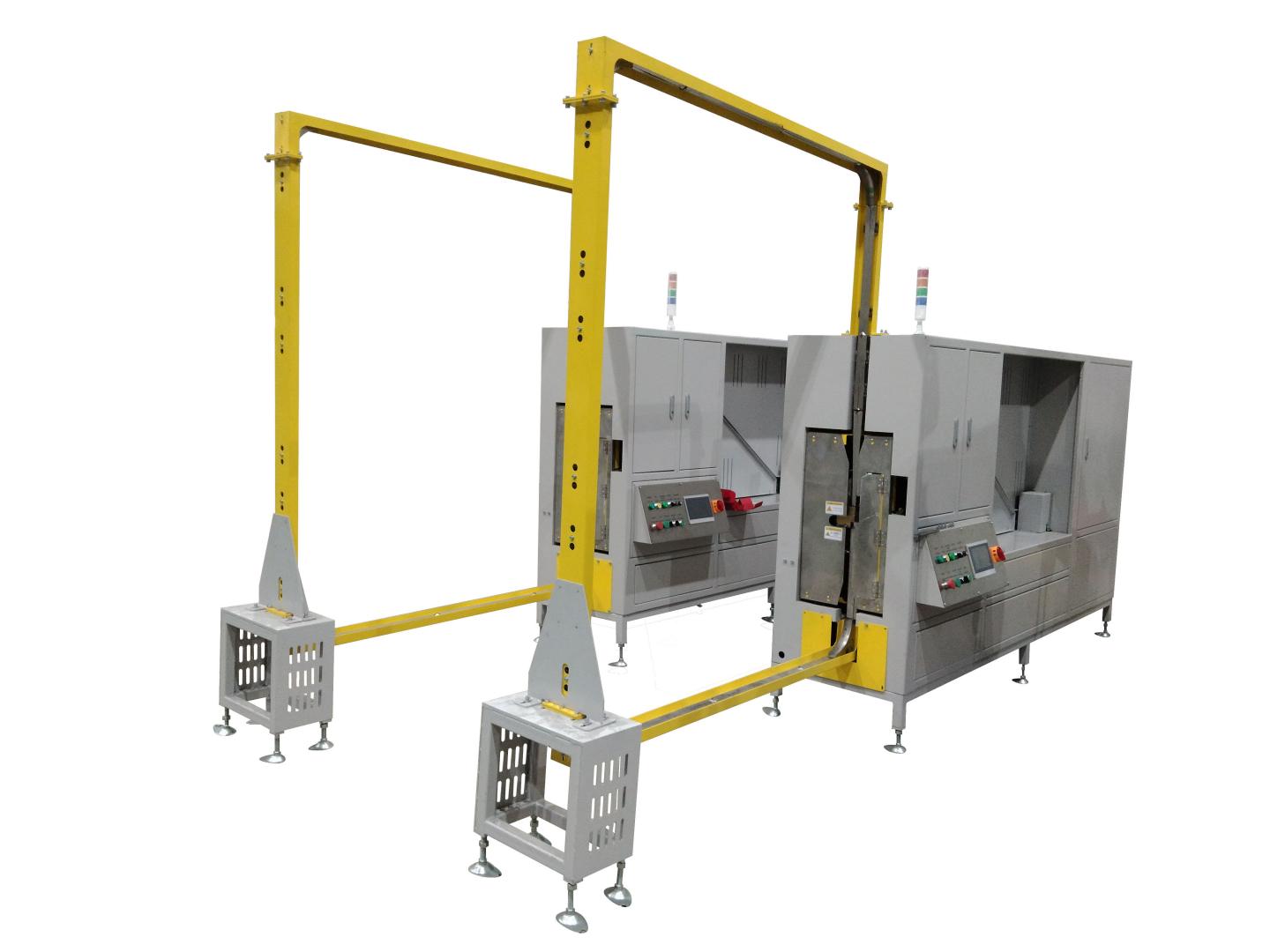

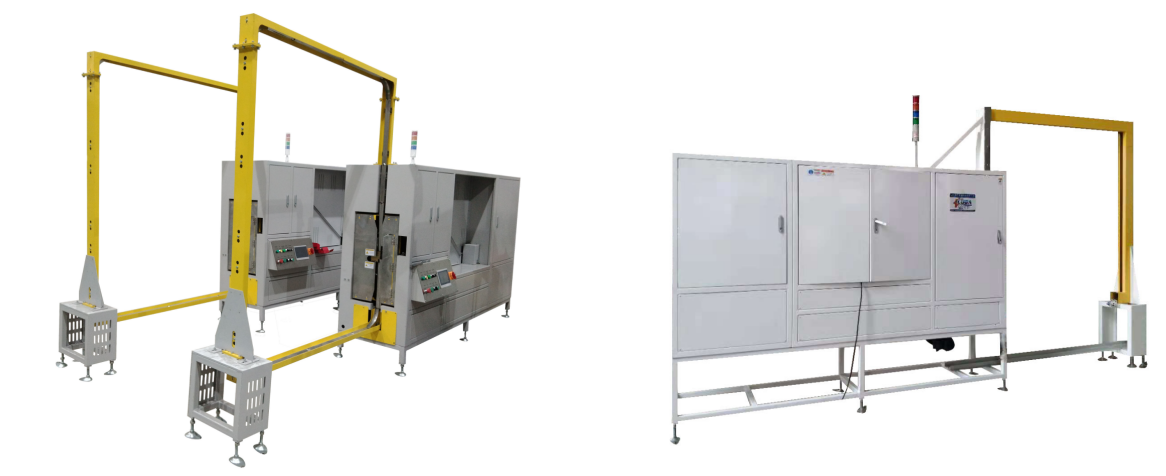

Sword piercing baler
Wear sword baler is a polypropylene plastic tape as the bundling material, bundling through the movement of the movement close to the bundling box, and then carry out the bundling action, so as to improve the phenomenon of heavy box bundling is not tight. This machine is especially suitable for large size and heavy packing boxes. The strapping process is controlled by photoelectric switches, which automatically completes 1-2 strapping passes. It is characterized by high efficiency, durability and good strapping effect.
| Equipment name | Sword piercing baler |
| Model | LJ-DB700A |
| Bow Stand Size | W1500mm*H2000mm |
| Countertop Height | Greater than 300mm |
| Tabletop conveying method | No conveyor, to be used with an assembly line |
| binding force | 5~80kg adjustable |
| Bundle size range | L800-1200mm*W800-1200mm*H360-1800mm |
| Applicable strapping | PP belt width 10~14mm, thickness 0.6~0.9mm |
| Packing speed | 2.5 sec/strip (depending on product size) |
| Packing tape bonding surface | The bonding surface is located on the side of the packing carton, the bonding surface is >90%, the bonding width is >20mm. |
| working method | Automatic Packing / Spot Packing / Unmanned Packing |
| Equipment Size | L800mm*W3000mm*H2000mm(Expanded) |
| (max)Total Weight | 1000KG |
| power supply | 220V380V 50-60hz |
| Equipment power | 3.6KW |
| Optional | Higher/larger |
We have independent design and development capabilities, independent assembly capabilities, independent after-sales capabilities. Lujia Intelligent for high-tech enterprises, specializing in new enterprises, small and medium-sized science and technology enterprises, the company's products have passed the European Union CE certification, 1S09001 quality and environmental system certification, 1S045001: occupational health and safety management system, 1S014001: environmental management system certification.
Such a company has a guarantee of after-sales service, quality and brand, which is why I suggest you choose Lujia Intelligent. Quality is the foundation of the enterprise!
