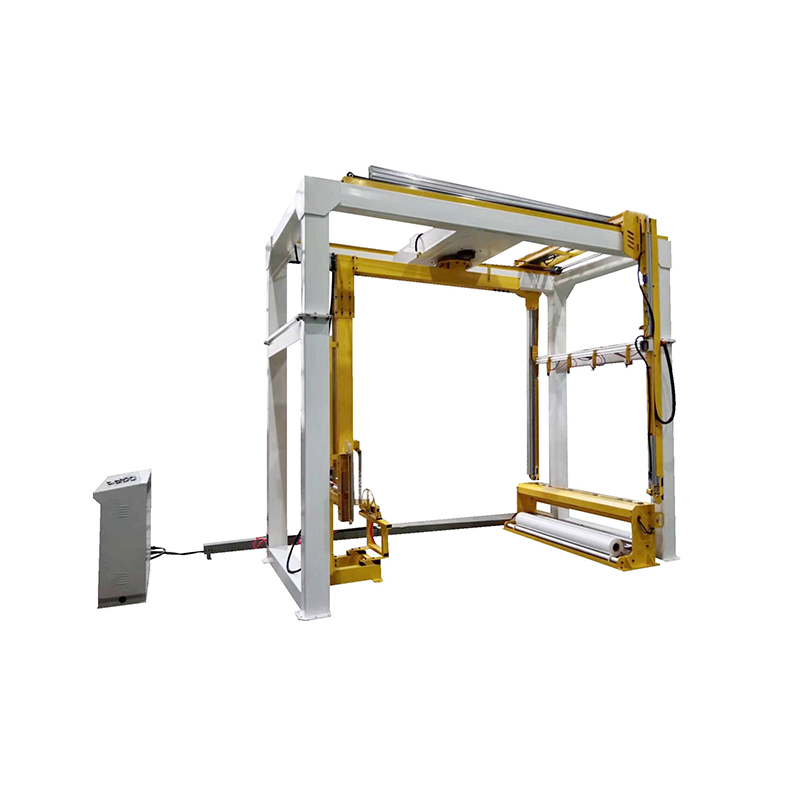

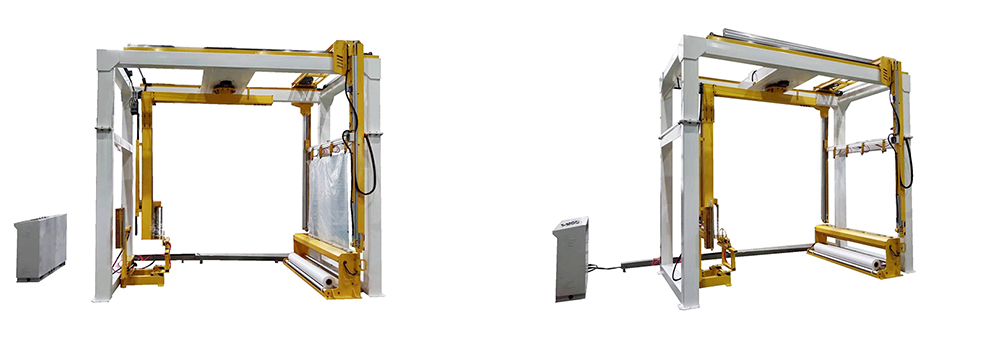

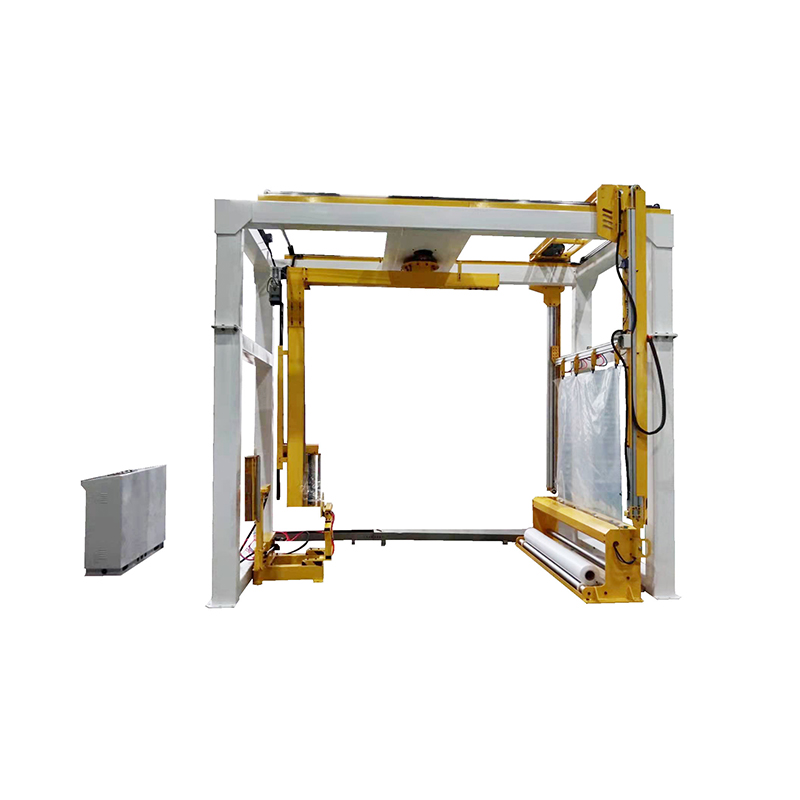

Cantilever Overhead Film Wrapping Packaging Machine
1：We Lujia have 15000 square meters of production workshop, with independent welding ability, welding using welding robot for welding, fast speed, smooth and beautiful surface.
2: We Lujia has independent laser doweling ability, all processing parts are cut with high power laser machine oxygen, cutting parts without burr, fine, beautiful.
3：We Lujia has independent bending processing capacity, bending and cutting a narrow and smooth incision, no rounded corners and mechanical undercutting often have a burr.
4: We have independent design and development capabilities, independent assembly capabilities, independent after-sales capabilities. Lujia Intelligent for high-tech enterprises, specializing in new enterprises, small and medium-sized science and technology enterprises, the company's products have passed the European Union CE certification, 1S09001 quality and environmental system certification, 1S045001: occupational health and safety management system, 1S014001: environmental management system certification.
Such a company has a guarantee of after-sales service, quality and brand, which is why I suggest you choose Lujia Intelligent. Quality is the foundation of the enterprise!
This equipment is a packaging equipment which is specially designed for palletizing products on pallet and then top laminating and wrapping the film on all four sides. It can wrap and pack the products on all four sides according to the characteristics of the memory of the stretch film, which can tightly fit the film on the surface of the goods, and play the roles of moisture-proofing, water-proofing, and protecting the goods, and it is an auxiliary packaging equipment for the enterprises to reduce the labor cost, reduce the labor intensity of workers, and improve the automation, standardization, and intellectualization of the production. It is an auxiliary packaging equipment for enterprises to reduce labor cost, reduce labor intensity of workers, improve automation, standardization and intelligent production.
When the product is placed into the winding machine position by hand and the winding machine is started, the rotary arm system starts to rotate around the product and at the same time the film feeding motor feeds the film, after winding to the top of the product, the rotary arm stops and the top film starts to work and covers the top of the product, the rotary arm continues to rotate and the goods are wrapped and packaged. After the packaging is finished, the rotary arm stops to the home position, the automatic top film breaking system carries out the automatic film breaking and film stroking and film breaking process on the goods, the automatic top film breaking system returns to the home position, and returns to the initial position to wait for the next process.
Equipment name | Cantilever Overhead Film Wrapping Packaging Machine |
Model | LJ-YB1800FM |
Turntable diameter | 1900mm |
Wrapping size | 1200mm×1200mm（L×W） |
Packing height | 2000mm/2400mm/2800mm |
Wrapping effciency | 20-30 trays/hour |
Spin speed | 3-15rpm ；Variable speed adjustable |
Membrane frame system | Pre-stretching film frame, pre-stretching up to 250%, automatic film feeding, frequency conversion speed control |
Control System | PLC control, touch screen display, adjustable number of layers and times of winding, automatic reset of rotary table, automatic sensing of the height of the goods. |
Use air source | 1000ml/m³ |
Total Weight | 1200KG |
Dimensions | 3400mm×2000mm×3100mm |
Voltage | 3.5KW AC220V/50HZ |
